Backlit wall and ceiling

Illuminate your spaces

Photo of an ALYOS backlit canvas in an amphitheatre
photo of a ceiling printed on the back of our standard cladding with black stripes

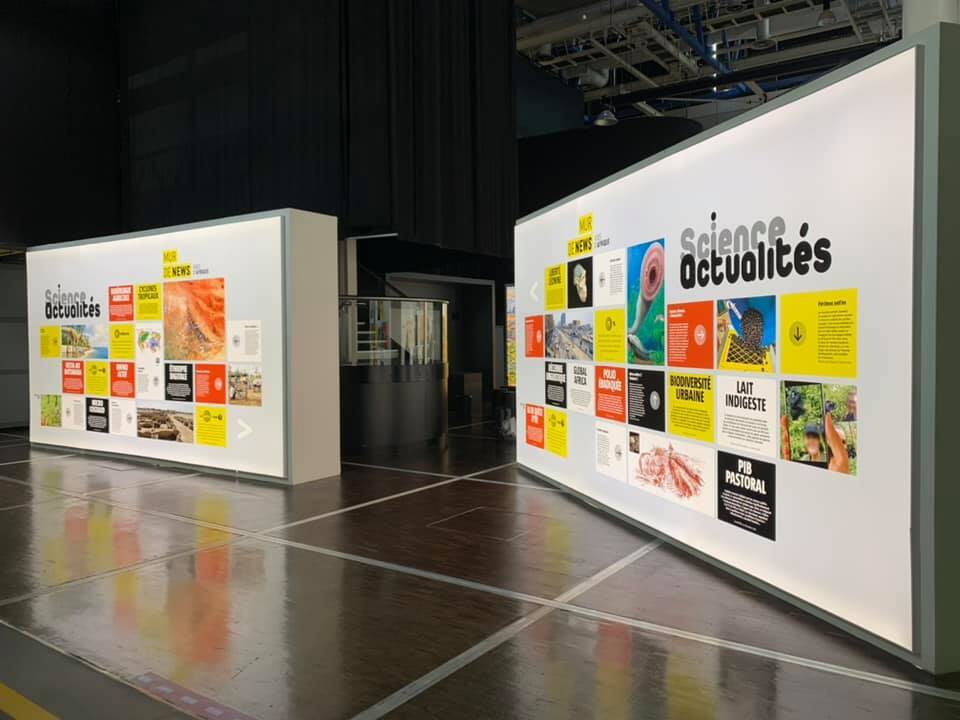

Espace sciences actualités at the cité des sciences et de l'industrie

Backlit walls and ceilings: the ALYOS® solution to transform your interior

To sublimate an interior design, the materials chosen must complement each other perfectly, both in terms of texture and color. But beyond the visual aspect, lighting plays an essential role. With this in mind,ALYOS® offers backlit walls and ceilings that combine aesthetics and performance.

These surfaces incorporate a translucent, backlit fabric, specially designed to diffuse soft, even light. It can be up to 5 meters wide, enabling large surfaces to be covered seamlessly. Thanks to this technology, there's no need to multiply light sources: the light filtered through the fabric is enough to create a unique ambience.

Each backlit wall or ceiling consists of :

  • ALYOS® translucent fabric,
  • a perfectly matched LED system,
  • and, if required, a discreet or invisible frame.

To suit every project, these canvases can be customized: choose the color orprinted image that fits in with your world. An ideal solution for combining design, visual comfort and creativity.

FIND OUT MORE
photo of a ceiling with a translucent canvas printed with fish and divers installed on the ceiling of a dentist's office

The benefits of ALYOS® backlit wall and ceiling coverings

To guarantee long-lasting, high-quality projects, ALYOS® develops technical coatings adapted to the integration of light into surfaces. These solutions are particularly well-suited to creating backlit walls and ceilings in private or professional spaces.

ALYOS® translucent fabrics can be up to 5 meters wide and 50 meters long, yet weigh only 160 g/m². They diffuse daylight-like light, ideal for creating a soft, comfortable ambience.

ALYOS® backlit walls and ceilings are designed with Bs1d0 (fire-rated) and CE-certified coatings, meeting safety and quality requirements.

For rooms exposed to damp, ALYOS® also offers highly resistant hydrophobic coatings. They provide long-lasting protection for walls and ceilings against condensation, infiltration and associated risks (cracks, mold, etc.).

In addition to their technical role, these coatings help to create a soothing visual environment, while meeting the constraints of the most demanding architectural projects.

Light heat

Neutral white (4000K) as standard, others on request.

Width

up to 4.96 m wide in print and 5.00 m in white

Length

available up to 50 m long, on request.

Eco-friendly logo

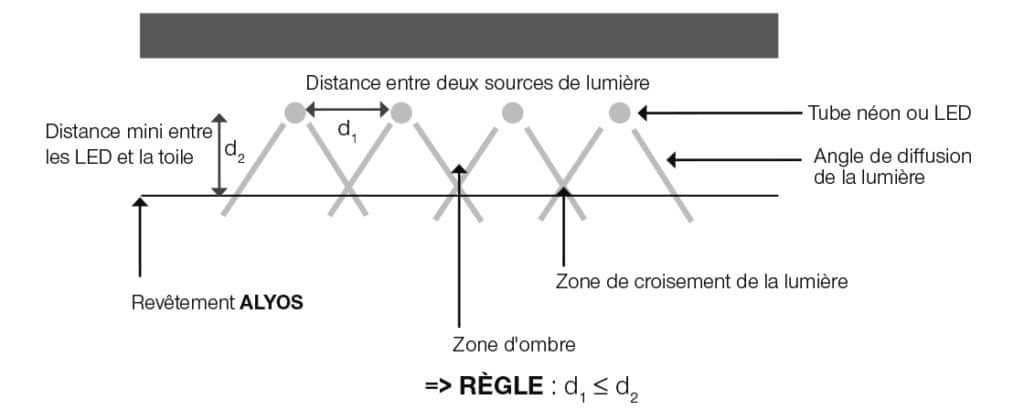

LED installation diagram

How to install an ALYOS® backlit system

  • STEP 1
Installation of LEDs around the edges or in the background (depending on your project). Depending on the complexity of the project, a structure can be created to support the system. In the case of background lighting, LED panels cover the entire surface to be treated, so as not to create any shadows. This ensures even illumination. A plenum of around twenty centimetres is required. The greater the spacing between the LEDs and the fabric, the more diffused the light will be, and the fewer stripes of light will be created. The system can be dimmed as required. This allows you to modulate the light intensity.
  • STEP 2

We recommend double-skin backlit ceilings. We add a transparent protective veil to trap any dust. This double skin is not mandatory.

  • STEP 3

Installation of ALYOS® translucent cladding. This fabric can be white or printed. Let your imagination run wild.

REQUEST FOR INFORMATION

Pictures of achievements

Photo of a corridor with ALYOS backlit ceiling cladding
Photo of ALYOS translucent white ceiling for backlighting
photo of a ceiling with a translucent canvas printed with a cloudy sky on the ceiling of a dentist's office
See more photos
